Place of Origin:
China
Brand Name:
JINZHU
Certification:
CE
Model Number:
JZ-L6011-A
Product Description
Automatic round tube linishing machine is used for round tube to get satin finishing. And this kind of tube linishing machine also can grinding many kinds of materials like: stainless steel ,copper, aluminum, brass alloy etc. The features as below:
can be installed with abrasive belt to get satin grinding effect
the grit of belt is from small to large to sweep sandholes and scratch to round tube and get satin grinding effect
large production can be up to 15 m/min with 8K mirror finishing, Common machine only can achieve 8 m/min
more than 10 years continuously working lifetime
manual protection on safety operation
Specification
|
automatic round tube linishing machine |
|
|---|---|
|
Model |
JZ-L6011-A |
|
Main motor |
3 KW*2 (SIEMENS) |
|
Tube OD |
10-60 mm(round tube) |
|
Belt size |
1880*100mm |
|
Spindle speed |
1420 r/min |
|
consumable size |
OD250 mm*ID 32mm |
|
voltage |
380 V,50/60 HZ,3 Phase |
|
Polishing heads |
2 heads |
|
Working condition |
wet type or dry type |
|
Consumables |
abrasive belt |
|
ROHS |
Environment protection completely with dust cover |

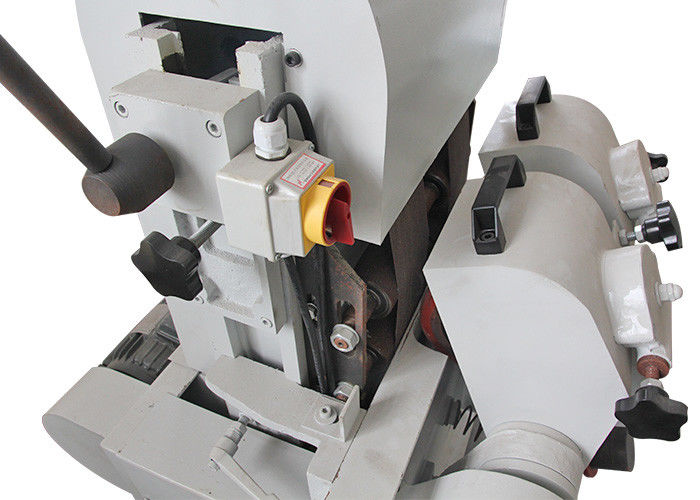

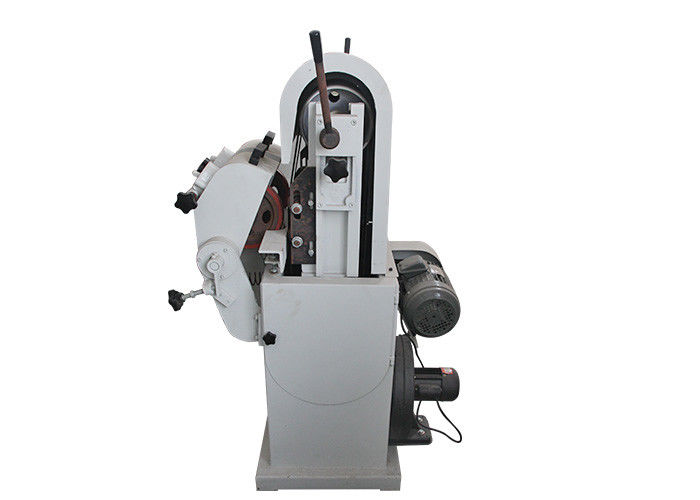

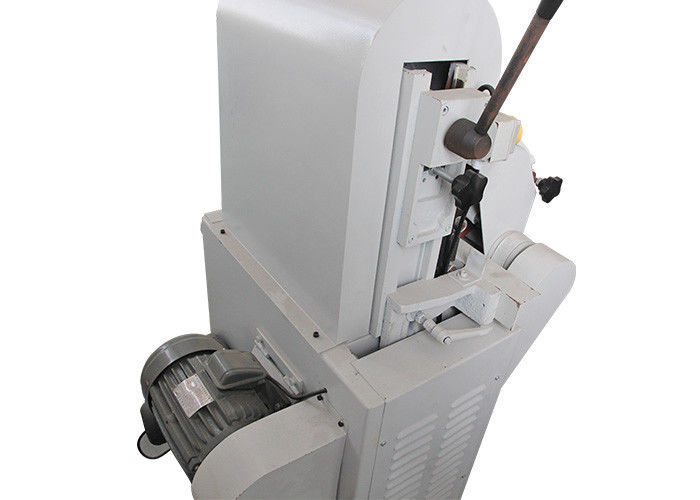

Detail of automatic round tube linishing machine
Consumables usage
This automatic round tube linishing machine very simple for use, only use Abrasive belt. for which grit yiou have to use, then you can use according to the raw material surface and the final finishing you need for tubes. For more details, please contact with us for discuss .
Contact person: Laura xu
Mobile/whatapp/wechat:+86 13929272332
Email: sales@dgjinzhu.com
|
JZ-L6 |
|
JZ-L6011-A |
