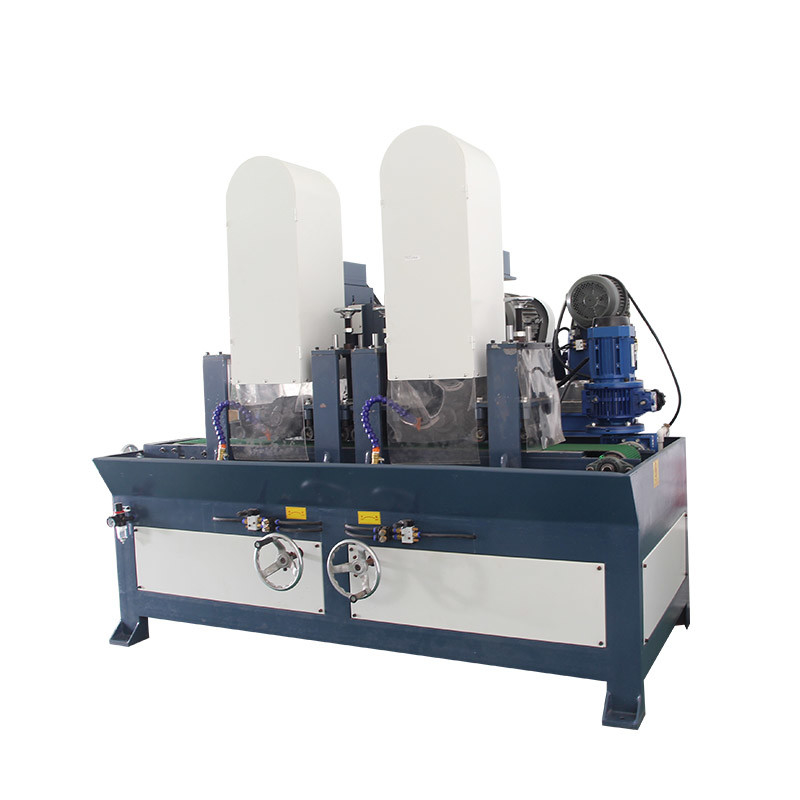

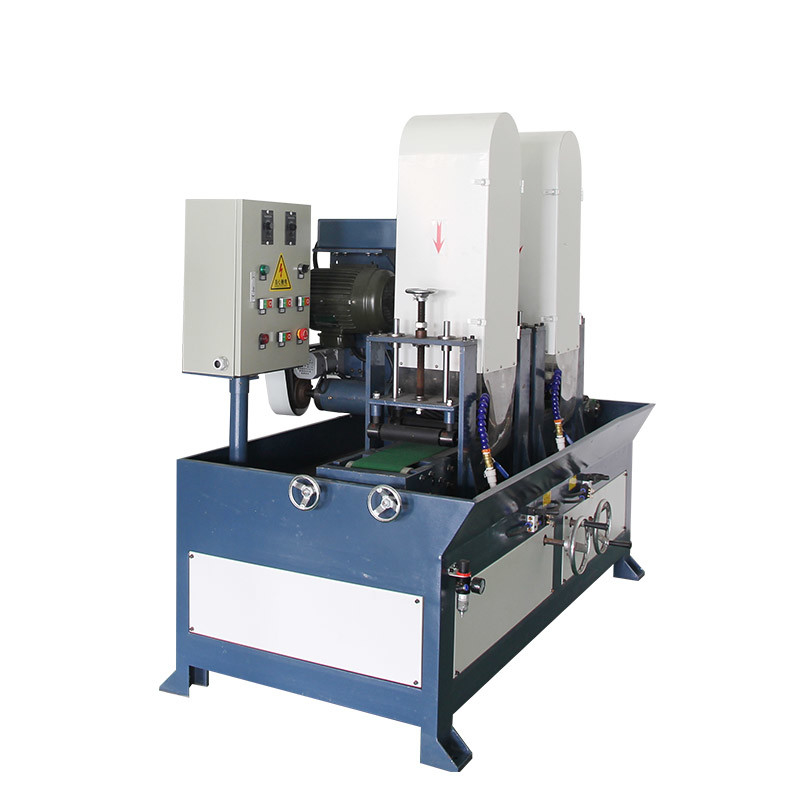

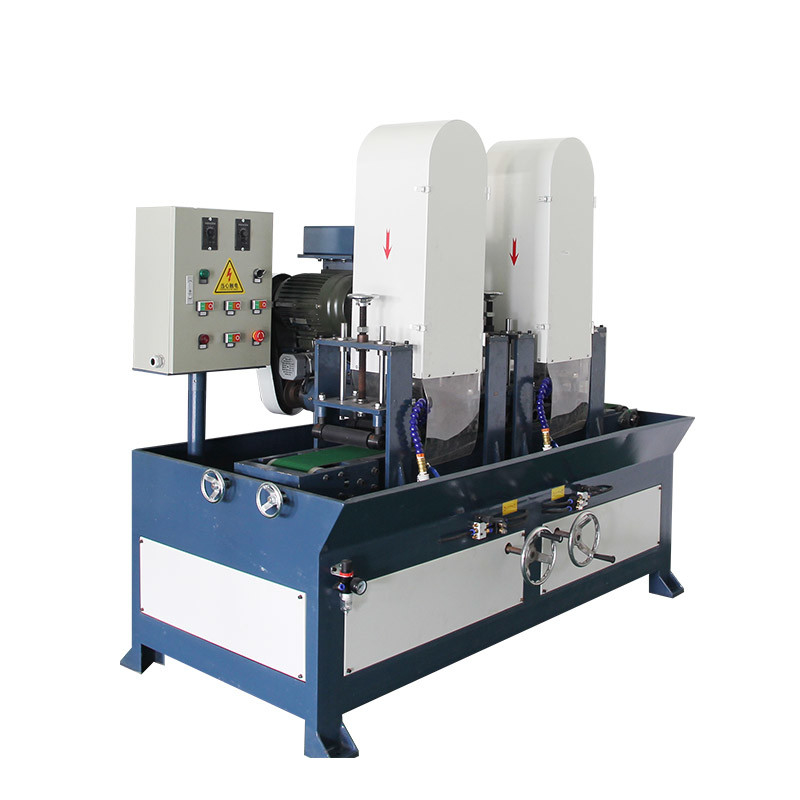

150mm Metal parts surface sanding machine

buffing machine for stainless steel

buffing and polishing machine

Place of Origin:

Guangdong, China (Mainland)

Brand Name:

JINZHU

Request A Quote

150mm Metal parts surface sanding machine

Product Details

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Name:

Conveyor Door Handle Polishing Machine

Main Motor:

4kw, 1400r/m

Spindle Speed:

2300r/m

Feed Distance:

10-150mm

Warranty:

One Year

Highlight:

buffing machine for stainless steel

buffing and polishing machine

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiable

Wide belt sheet metal sander sanding machine

Get Best Price

Durable High Efficient Dry Grinding Rr1000mm Metal Parts Surface Deburring Sheet Metal Buffing Drawing Machine For Metal

Get Best Price

High Efficiency Wet Belt Sander Grinding Metal Cnc Milling Machine 2-Axis Cnc Surface Water Mill Wire Drawing Machine

Get Best Price

Water Mill Double Drawing Machine Metal Wet Sander Wet Belt Sander For Metal Sheet Aluminum Board Sanding Machine

Get Best Price

Contact Now

Product Description

item: 360 degree conveyor door handle polishing machine, zinc cabinet handles polishing machine

main features:

equipment standard configuration: electrical components, electrical, PLC, reducer, bearings, screw etc. All adopt the domestic famous brands.
Form a complete set of six groups of double column rotate 360 degrees polishing head, and two groups of vertical polishing rotate 360 degrees. About 80 artifacts can be installed at the same time, greatly improve production efficiency.
Polishing head of the tap or the handle R Angle of artifacts such as polishing, leave no dead Angle.
Automatic spraying device, liquid wax can be set according to the polishing spray liquid wax.Workpiece loading convenient and quick, only 1 or 2 people operate the machine. Polishing are of good quality and high efficiency.

Machine equipment for production safety consideration, dangerous places with environmental protection, its beautiful shape, concise and easy design. To significantly reduce safety accidents

main parameters:

1	name	360 degree automatic door handle polishing machine
2	model	JZ-L8888
3	machine size	96007001100mm
4	polishing head size	12008002000mm
5	main motor	4kw, 1400r/m
6	conveyor motor	4-class 1.5kw SIEMENS
7	polishing head rotation motor	4-0.75kw*8pcs Taiwan
8	spindle speed	2300r/m
9	up/down motor	4-0.7kw*8pcs Taiwan
10	forward and backward motor	4-0.37kw*8pcs Taiwan
11	polishing head up/down distance	500mm
12	feed distance	350mm
13	polishing diameter can up to	500mm
14	polishing wax	with automatic spray wax device
15	main electric parts and PLC	siemens
16	voltage	380v-50HZ
17	weight	3000kg
18	max process size	230150160mm

Door handle of stainless steel polishing machine equipment mainly for all kinds of door handles and all kinds of surface polishing treatment of axially symmetrical parts, the workpiece is walking through the workholder is fixed on the chain plate, chain plate connected to each section, the overall fixed rack in the middle, do the overall circular movement. Has the advanced structure, compact structure, smooth operation, low noise, etc.

the door handle polishing machine mainly use for the door handle polishing, the effect of the polishing as follow:

packaging & shipping

the door handle polishing machine will be packaged in wooden case or container, and will be shipped in 20-30 days.

our services:

One year free maintenance

Pre-service training free of charge

Lifelong technical support

Company information:

Dongguan Jinzhu Machine Equipment Co.,Ltd is manufacturing the polishing machine, grinding machine, cnc metal spinning machine and for more than 10 years.
