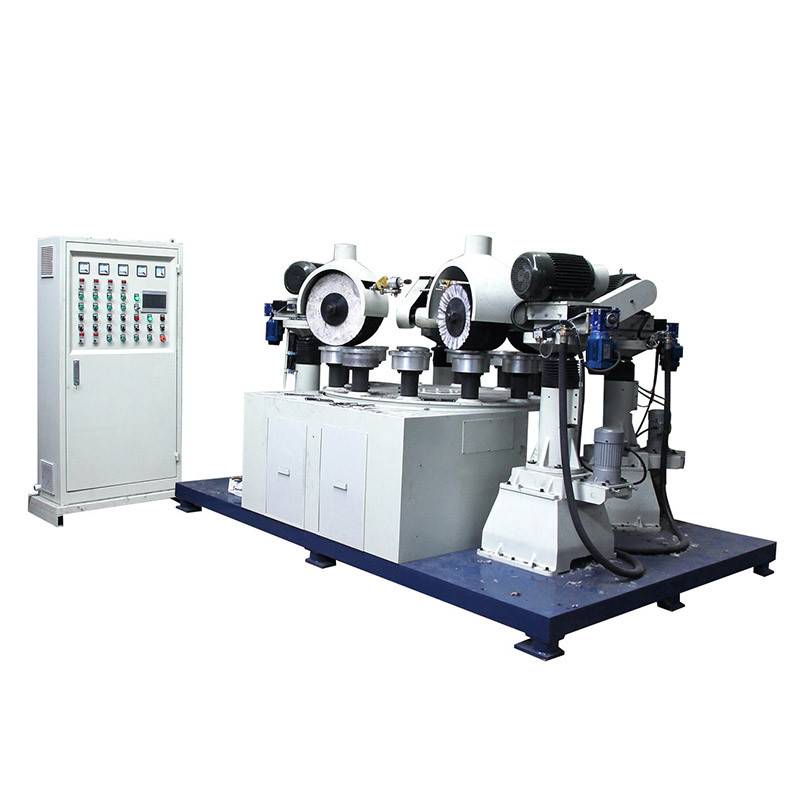

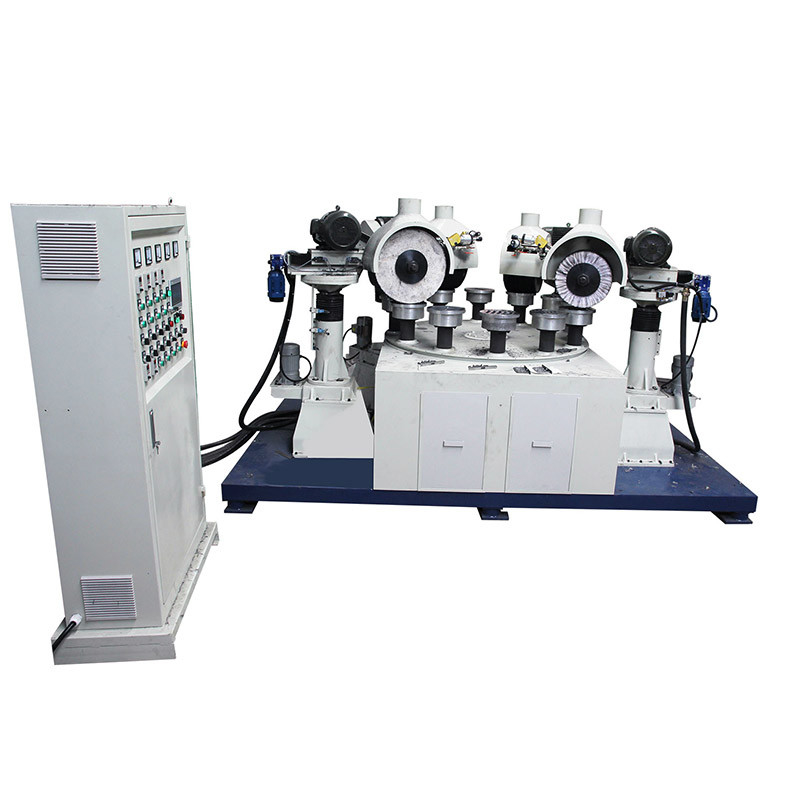

6 Grinding Head Mirror Polishing Machine Rotary Buffing For Metal Lock Panel Brass

6 Grinding Head Mirror Polishing Machine Rotary Buffing For Metal Lock Panel Brass

6 grinding head polishing machine

rotary buffing Mirror polishing machine

380V Mirror Sheet polishing machine

Place of Origin:

Guangdong, China

Brand Name:

JINZHU

Contact Us
Request A Quote
Product Details
Condition:
New
Video Outgoing-inspection:
Provided
Machinery Test Report:
Not Available
Marketing Type:
Ordinary Product
Warranty Of Core Components:
1 Year
Core Components:
PLC, Engine, Motor
Power (kW):
24.5
Weight (KG):
4000
Key Selling Points:
Automatic
Warranty:
1 Year
Applicable Industries:
Food & Beverage Shops, Building Material Shops, Machinery Repair Shops
Showroom Location:
None
Product Name:
Mirror Polishing
Drawing Material:
Steel Copper
Usage:
Polishing
Application:
Mirror Polishing
Voltage:
380V-50hz
Main Power:
4kw
Total Power:
27.28kw
Turntable Interval Time:
5~20S
Spindle Speed:
3000
Air Press:
0.55MPa
Highlight:

6 grinding head polishing machine

,

rotary buffing Mirror polishing machine

,

380V Mirror Sheet polishing machine

Payment & Shipping Terms
Price
$48,732.00/sets >=1 sets
Packaging Details
Standard Export package
Product Description
Product Description

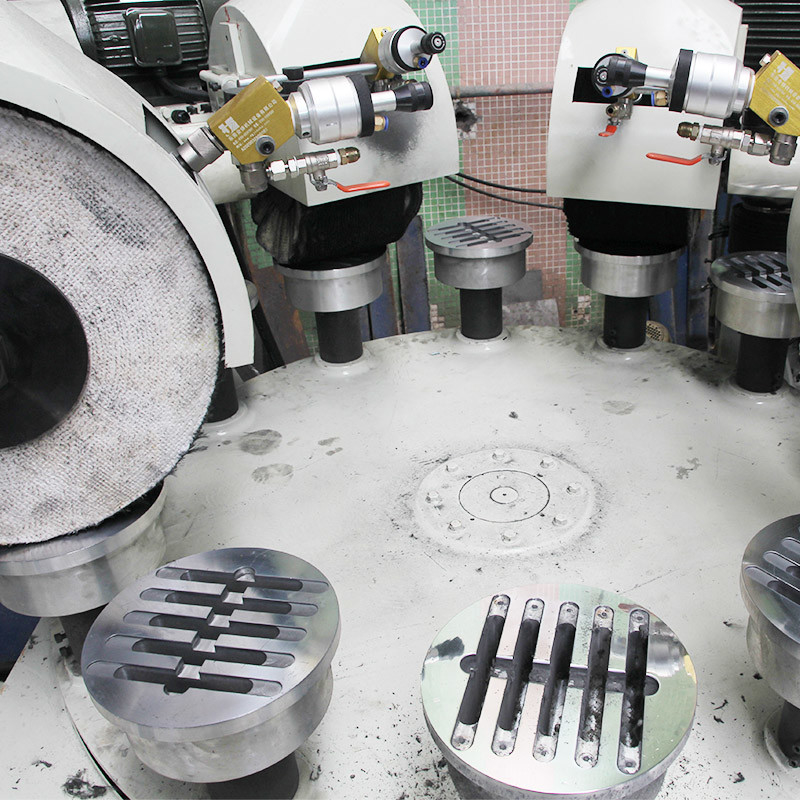

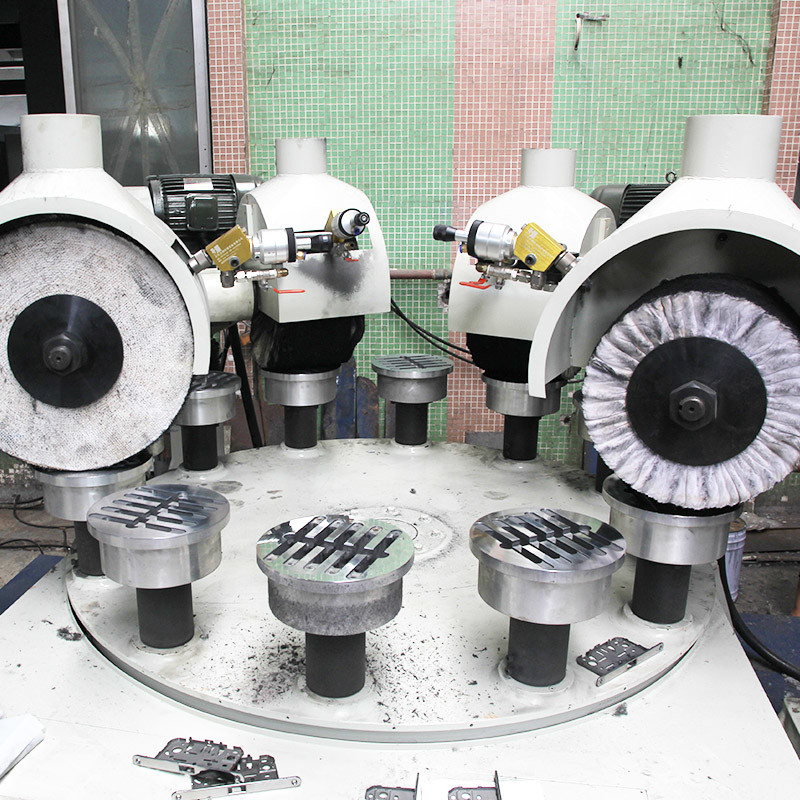

This equipment is mainly aimed at grinding the top and side surfaces of your lighting accessories products. Similar product and process requirements can be applied, and the smelting tool can be replaced. This equipment adopts the intermittent rotation of the main disc with 16 tooling positions and a diameter of ¢1200mm, and 6 working heads grind the top and side surfaces of the workpiece in turn. When the large disc stops intermittently, the workpiece tooling automatically Rotate, the polishing head is fed separately for polishing, the workpiece is placed on the fixture, and when each workpiece is transferred to the operating station, the workpiece can be taken out, and the surface effect is uniform and the operation is simple.

6 Grinding Head Mirror Polishing Machine Rotary Buffing For Metal Lock Panel Brass 0
2-1. During the on-site installation of this equipment, the cost of safety, hygiene and the following items shall be provided by the purchaser: 1) On-site power supply and main power line 2) Workpieces required for debugging equipment 3) On-site lifting and handling equipment 4) Debugging and using consumables 2-2. When the engineering personnel in charge of the supplier make equipment, if there is a major modification to the equipment, they should confirm with the relevant responsible personnel of the purchaser, and ensure to contact the responsible personnel of the purchaser at any time to deal with the problem. 2-3. The dimensions in this technical file are for reference, and the dimensions will change during production, but the use efficiency will remain the same.
Specification
1. Voltage 380V-50hz 2. Main Power 4kw 3. Total power 27.28kw 4. Turntable interval time 5~20S 5. Spindle speed 3000r/min 6. Waxing device 7. Consumable specifications Φ250*50mm 8. Consumables up and down stroke 200mm 9. air press 0.55-0.8MPa 10. Work position 12 11. Consumable swing range 0~40mm 12. Installation size 2500*2200*2300mm L*W*H
Packing & Delivery
6 Grinding Head Mirror Polishing Machine Rotary Buffing For Metal Lock Panel Brass 1
Company Profile

6 Grinding Head Mirror Polishing Machine Rotary Buffing For Metal Lock Panel Brass 2
Dongguan Jinzhu Machinery Equipment Co., Ltd. is specialized in the design, production, sale, and professional manufacture of metal surface treatment machines, polishing machines, abrasive belt machines, wire drawing machines, cut ditch machines, sandblasting machines, CD profiling machines, spot welding machines and other equipment. For meeting the needs of different parts processing, we have developed a full range of types of machines, from manual to automatic model-based. We can produce as per customer's unique needs and capacity requirements. "Survive by technology, get credibility through quality" is our tenet. We provide high quality, reasonable prices, and after-sales services to meet customers' needs.
